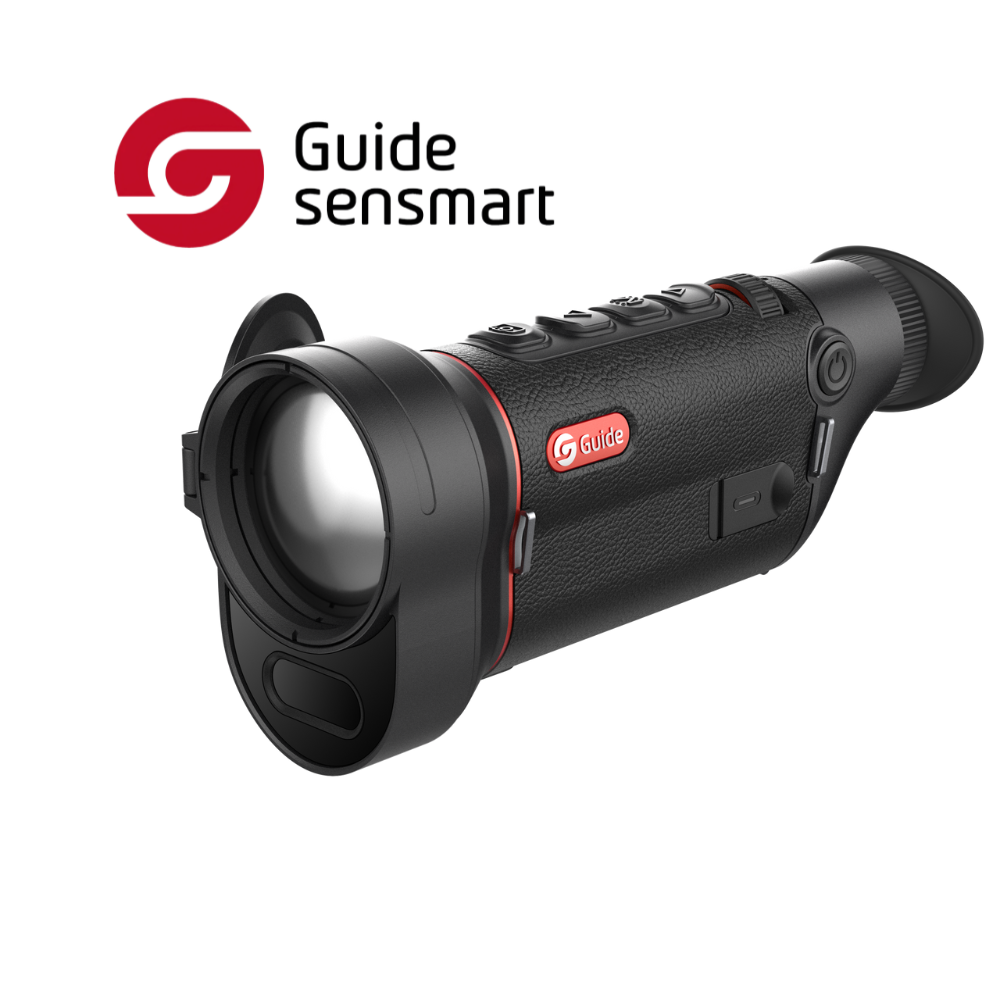

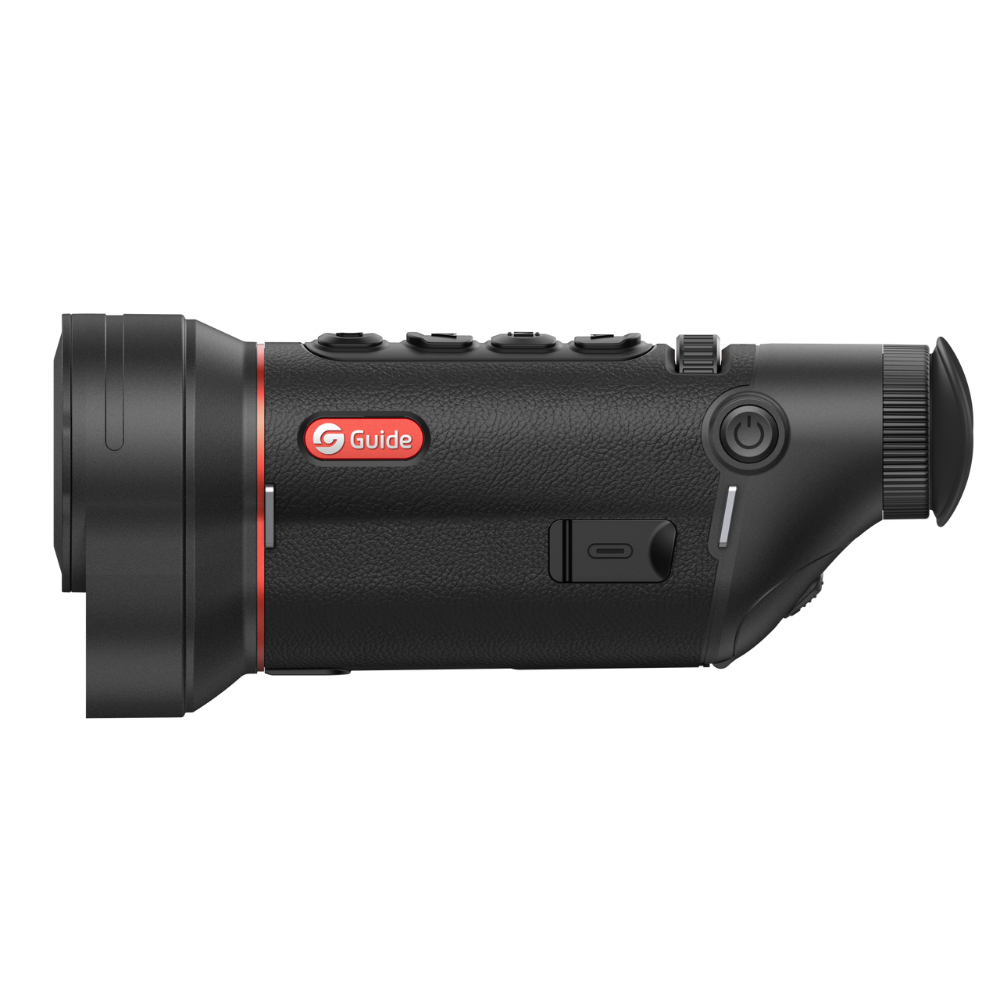

Guide TD653L
2249,00 €
The TD Gen3 LRF series thermal camera combines a compact design with a built-in laser rangefinder, offering a versatile solution for outdoor use. A convenient focus wheel allows easy one-handed operation, and the symmetrical ergonomic design suits both left- and right-handed users. The device lasts up to 10 hours continuously and features an IP67 rating, ensuring reliable performance even in challenging weather conditions. Wi-Fi connectivity enables fast data transfer and enhances the overall user experience.
Sensitive thermal sensor with 20 mK sensitivity
The device is equipped with a modern 12 μm NETD 20 mK thermal sensor with a resolution of 640×512, ensuring exceptionally sharp and detailed image quality. Thanks to this technology, objects can be clearly distinguished from their surroundings even in complete darkness or challenging weather conditions such as fog or rain. The sensor also responds quickly to small temperature differences, enabling more accurate and reliable thermal imaging.

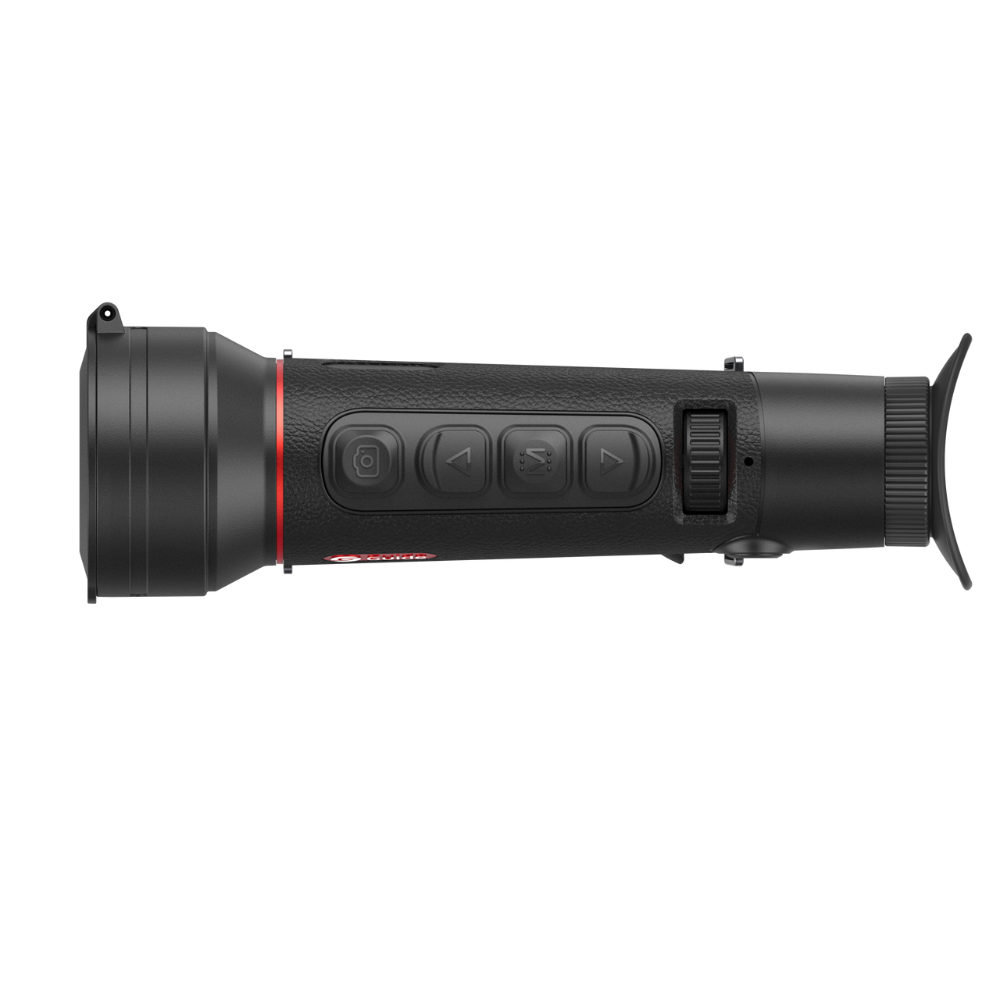

Comfortable design and one-handed operation
The symmetrical body design allows comfortable use with either the left or right hand. The button layout is ergonomically designed according to user habits, enabling easy one-handed operation.

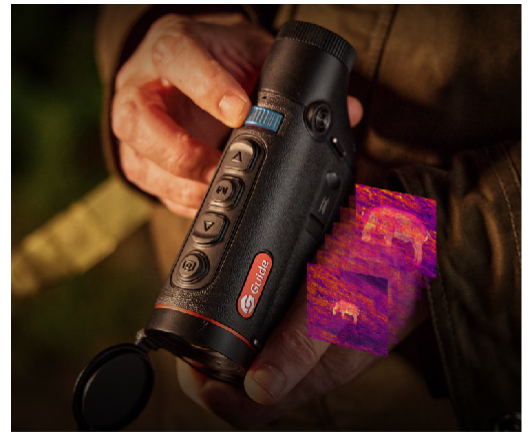

Comfortable focusing
The miniature focus roller provides a comfortable and precise focusing experience, allowing the user to quickly and accurately adjust the focus with a simple one-finger scroll.

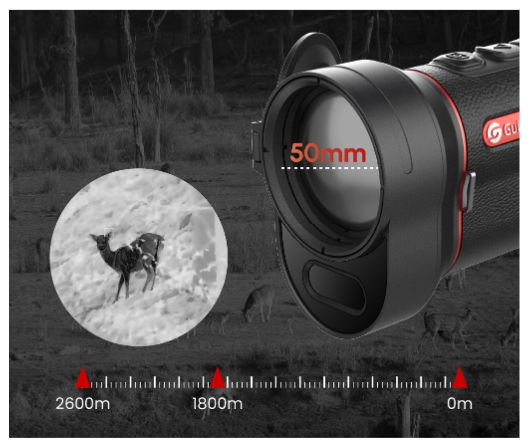

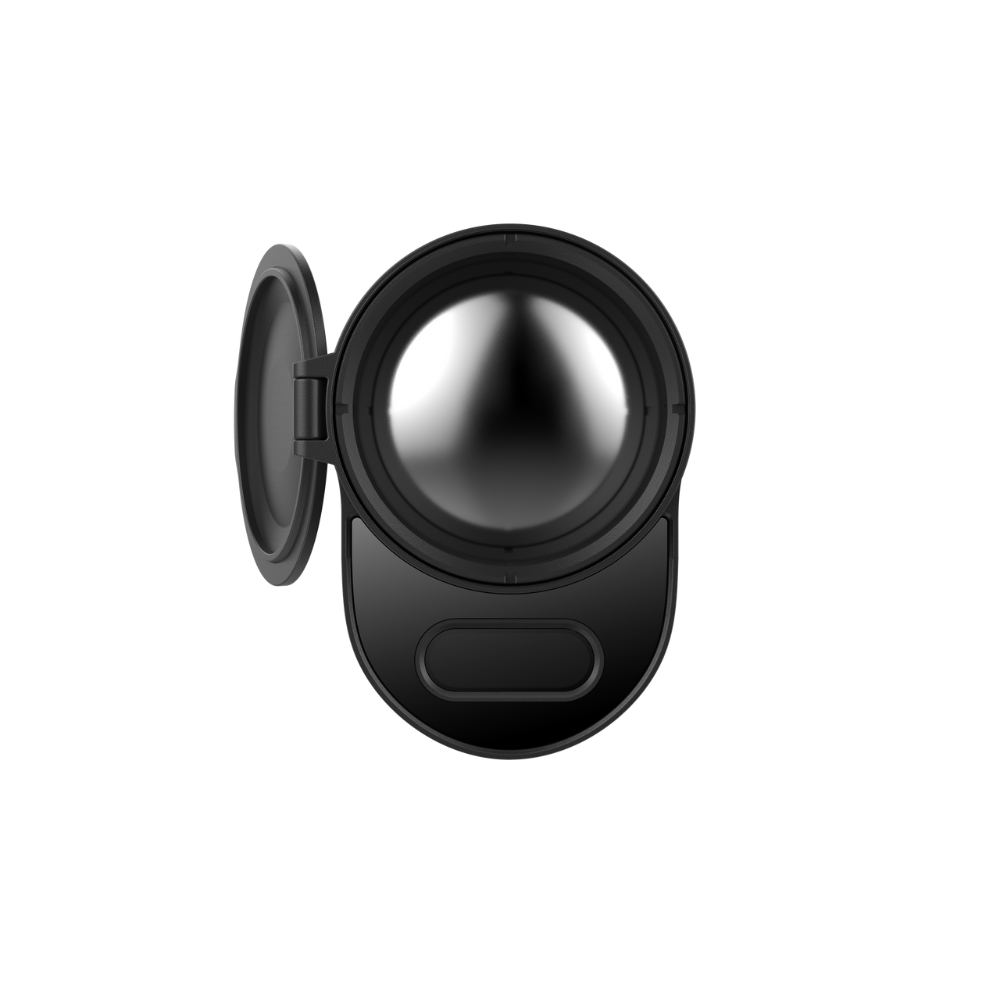

The 50mm lens helps you see even farther
To ensure sharp and detailed images during long-distance observation, the TD Gen3 LRF series uses a 50 mm lens, enabling clear views up to 2600 meters away.

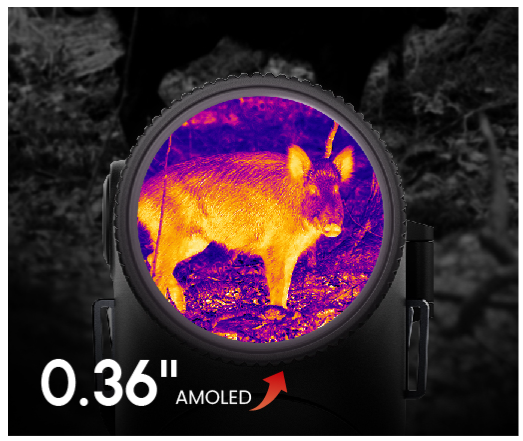

Larger AMOLED screen
The TD Gen3 LRF series features a larger 0.36-inch AMOLED display with a resolution of 1280×960, compared to the previous generation. This provides more vivid details and a more comfortable viewing experience.

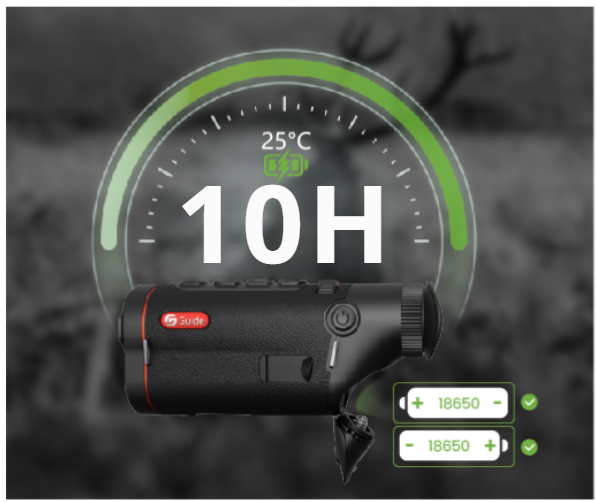

Extended battery life
The TD Gen3 LRF series provides up to 10 hours of runtime, making it ideal for observation, exploration, and stealth activities outdoors. The replaceable 18650 battery can be swapped in the dark without needing to distinguish between positive and negative terminals.
Built-in precise laser rangefinder
The integrated laser rangefinder increases both the portability and practicality of the device. The rangefinder has a maximum measuring distance of up to 1000 meters.

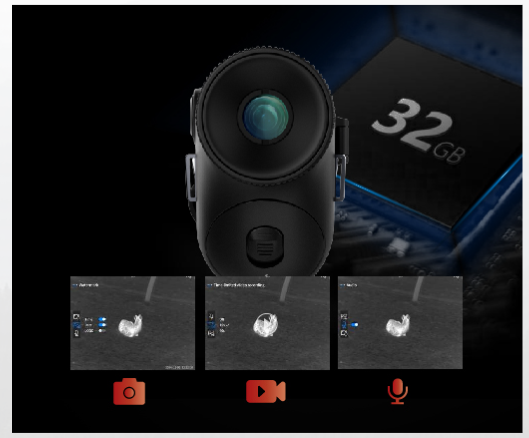

Large internal memory
The updated smart recording feature allows capturing videos with audio. The built-in 32 GB memory can store plenty of photos, providing ample storage space without worrying about running out of memory.
| Resolution | 640×512 |
|---|---|
| NETD | ≤20mK |
| Frame rate | 50 Hz |
| Objective lens size (mm) | 50 mm F1.0 |
| Field of view | 8.8°×6.6° |
| m@100m | 15×12 |
| Magnification | 2.6x~20.8x |
| Detection range | Up to 2600 m |
| Focus mode | Manual focus |
| Screen type | AMOLED |
| Screen size | 0.36 inch |
| Screen resolution | 1280×960 |
| Internal memory size | 32GB |
| Eye relief | 20 mm |
| Diopter | -6 ~ +6 |
| Laser rangefinder | YES |
| Measuring range | 1000 m |
| WIFI | 2.4G, 5G |
| Bluetooth | YES |
| Data cable | USB Type-C cable |
| Recording | YES, with sound |
| Picture | YES |
| Battery type | Replaceable 18650 battery |
| Battery life | Battery life ~ 10h |
| Operating temperature | -20℃—+50℃ |
| IP protection Level | IP67 |
| Weight, g | 472 g |
| Measurements, mm | 189.5×67.5×88 |
